Extract and Publish Data Into PI System

Batch and process manufacturers can finally accelerate analytics projects and get more value from their extensive process historian investments with HighByte Intelligence Hub.

Request Trial

Request Demo

PI System Connector

The PI System Connector for HighByte Intelligence Hub enables users to easily access PI System information, contextualize and merge with data from other systems, and publish information to leading cloud and analytics platforms.

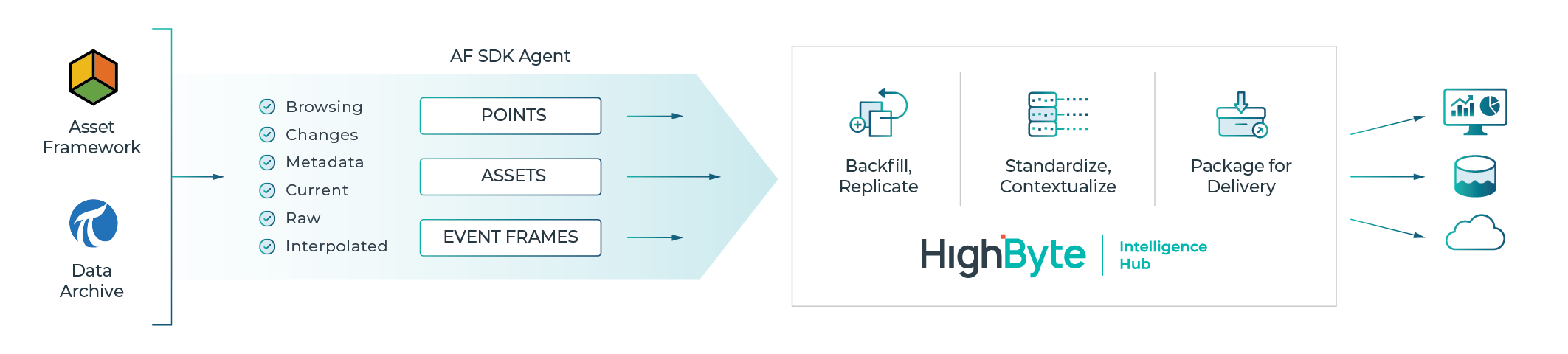

Use the connector to connect, read, and write to PI System. The connector supports reading raw points, aggregates, event frames, and assets and can ingest modified or late arriving data. For large payloads, enable compression between PI Agent and the Intelligence Hub to improve read performance. The connector also supports writing HighByte Intelligence Hub instances to PI points or writing instances as elements and templates directly to PI Asset Framework (AF).

Intelligence Hub supports PI System input and output types, including asset, asset metadata, event frame, point, and point changes, as well as all PI System output update options, including insert, insert compressed, no replace, remove, replace, and replace only.

Use Cases

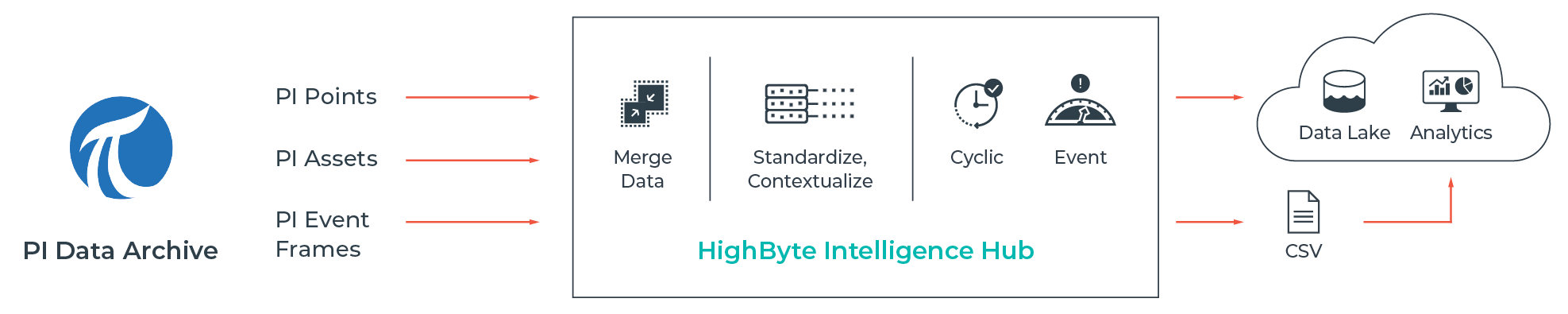

Query and mix aggregated data from PI System (e.g., min, max, average) with data from Manufacturing Execution Systems (MES) or Quality Management Systems (QMS) for streaming analytics. Or query years of historical data, model it, and send the data to an advanced Artificial Intelligence (AI) or Machine Learning (ML) platform to train AI models.

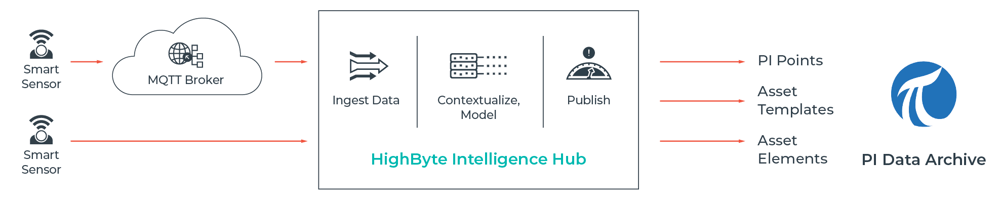

Integrate third-party sensor data from the Cloud back into the factory and write the modelled data directly into PI System running in the Cloud or on-premises.

Inputs

Outputs

Inputs

Outputs

Asset

Asset Metadata

Event Frame

Point

Point Change

“By extracting historical data from PI System and combining it with other operational systems data, we can accelerate analytics and turn data into actionable information. The PI connector in the latest release of HighByte Intelligence Hub is a powerful tool for equipment diagnostics, predictive maintenance, safety, and production improvement use cases in our process plants.”

Ismail Hussein, Enterprise Architect at Samuel & Son

Read

Learn how to use HighByte Intelligence Hub to browse PI assets and auto-generate the query to read asset elements. Preview event frames and dive deeper into reading one or more points within the PI System. When reading points, you have full control over specifying the time domain and data of interest. Browse and query PI Points directly from the PI Archive by their metadata.

Write

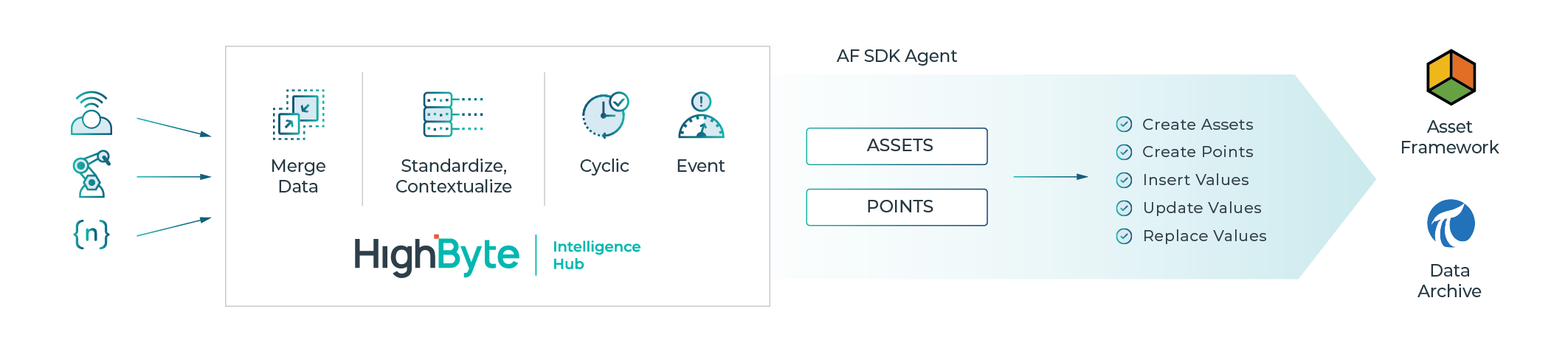

Watch how to use HighByte Intelligence Hub to write to PI System points and asset elements. Map an instance to one or more points in PI System as a delimited list of values. Then map that same model to PI Asset Framework where the model becomes a PI template and the instance becomes a PI asset.

Extract and Publish Data Into PI System

PI System Connector

Use Cases

PI SYSTEM CONNECTOR FEATURES AND FUNCTIONALITY

Seamlessly move data between the Cloud and PI System using the supported inputs and outputs below:

Inputs

Outputs

Video Tutorials

Connect

Read

Write

Learn
